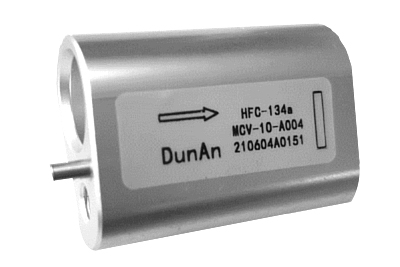

單向閥系列(A型) Check Valve Series(type A)
附件下載
單向閥MCV系列車用單向閥適用于車用空調系統,可用于排氣回路等,主要功能為實現制冷劑的單一方向流動,阻止反向流動,具有低流阻、低內泄漏的特點。

Vehicle check valve MCV series is applicable to vehicle air conditioning system and can be used in exhaust circuit. Its main function is to realize the single direction flow of refrigerant and prevent reverse flow. The characteristics of MCV are low flow resistance and low internal leakage.


項目

Item

 參數

Parameters

適用冷媒

Refrigerant

R134a、R1234yf

 環境溫度

Ambient Temperature

-40℃~+125℃

環境濕度

Ambient Humidity

<95%RH

壽命

Operation Life

≥20萬次

≥200000 times


型號

Model

通徑

Nominal Diameter(mm)

最高工作壓力(MPa)

Maximum Working Pressure(MPa)

開閥壓差(KPa)

Opening Differential Pressure(kPa)

內泄漏(ml/min)

Internal Leakage(ml/min)

MCV-10-A001

Φ10

3.5

≤10

≤20

MCV-10-A004

(內部新結構、帶防差錯銷)

Φ10

3.5

≤10

≤10

MCV-10-A005

(內部新結構)

Φ10

3.5

≤10

≤10

MCV-16- A001

Φ16

3.5

≤10

≤10


?
